Products - Solar Hybrid UPS & Inverters

Features:

• DSP micro controller based design
• UPS is capable of running standalone on solar power
• Can be used as a normal inverter until solar panel connection
• Can operate on both solar and grid power
• UPS always gives preference to solar power
• Robust design - 20 years design life
• Compliance to international standards
• Rugged design and engineering for continuous use
• Automatic changeover on power failure and resumption
• Multi functional LED indicator and sound alarm
• PC interface & web based software monitoring*
• Smart overload sensor with auto reset
• Intelligent thermal management
• LED / LCD digital display*
• No load auto shutdown

1. Accura Star Series Solar UPS

Models / VA	250VA	450VA	800VA	1000VA	1000VA	1500VA	2000VA	2500VA	3000VA
Watts	200	360	640	800	800	1200	1600	2000	2400
VDC	12	12	12	12	24/48	24/48	24/48	48	48
MAX SOLAR PV	75W	150W	200W	600W	800W	1200W	1600W	2000W	2400W
Charge Controller	ZD-PWM	ZD-PWM	ZD-PWM	ZD-PWM	ZD-PWM	ZD-PWM	ZD-PWM	ZD-PWM	ZD-PWM
Pure Sine wave	yes	yes	yes	yes	yes	yes	yes	yes	yes
Bi-directional inverter	yes	yes	yes	yes	yes	yes	yes	yes	yes
MAX battery Recommended	65AH	100AH	200AH	300AH	400AH	500AH	500AH	600AH	600AH
Power Save Mode	yes	yes	yes	yes	yes	yes	yes	yes	yes
Mode-Selection	-	-	-	-	yes	yes	yes	yes	yes
Solar-Grid-Batt	-	-	-	-	yes	yes	yes	yes	yes
Solar-Batt-Grid	-	-	-	-	yes	yes	yes	yes	yes

ZD-PWM - Integrated with zero drop PWM charge controller

Download Catalogue Download Specifications

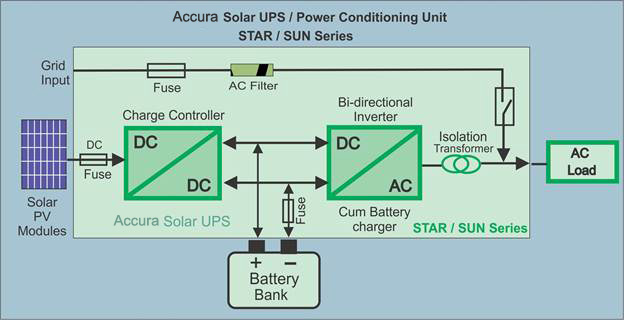

2. Sun Series Solar UPS

Models / VA	1000 VA	1000 VA	1500VA	2000VA	3000VA	5 KVA	7.5 KVA	10 KVA	15 kVA
Watts	800	800	1200	1600	2400	4000	6000	8000	12000
VDC	12	24/48	24/48	24/48	48	96	120	192	240
MAX SOLAR PV	600W	800W	1200W	1600W	2400W	4000	6000	8000	12000
Charge Controller	MPPT	MPPT	MPPT	MPPT	MPPT	MPPT	MPPT	MPPT	MPPT
Bi-directional inverter	yes	yes	yes	yes	yes	yes	yes	yes	yes
Pure Sine wave	yes	yes	yes	yes	yes	yes	yes	yes	yes
Power Save Mode	yes	yes	yes	yes	yes	yes	yes	yes	yes
Mode-Selection	yes	yes	yes	yes	yes	yes	yes	yes	yes
Solar-Grid-Batt	yes	yes	yes	yes	yes	yes	yes	yes	yes
Solar-Batt-Grid	yes	yes	yes	yes	yes	yes	yes	yes	yes

Download Catalogue Download Specifications

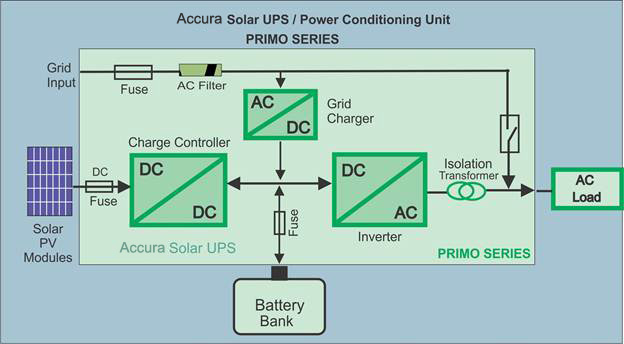

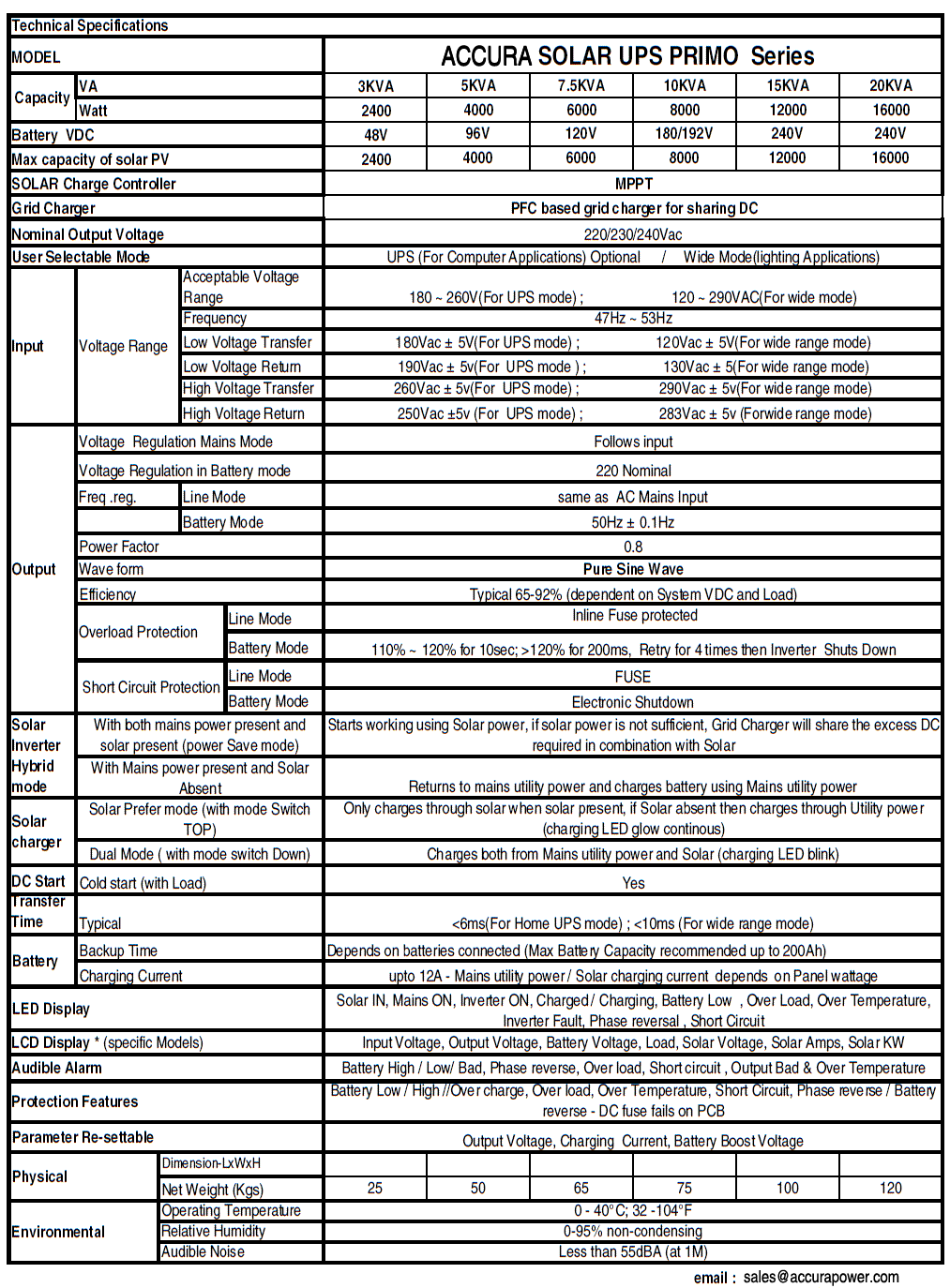

Primo Series Solar UPS

Models / VA	3000VA	5 KVA	7.5 KVA	10 KVA	15 kVA	20 kVA
Watts	2400	4000	6000	8000	12000	16000
VDC	48	96	120	180/192	240	240
MAX SOLAR PV	3000W	5000W	7500W	10000W	15000W	20000W
Solar Charge Controller	MPPT	MPPT	MPPT	MPPT	MPPT	MPPT
Grid Charge controller	PFC-DCR	PFC-DCR	PFC-DCR	PFC-DCR	PFC-DCR	PFC-DCR
UNI-Directional Inverter	yes	yes	yes	yes	yes	yes
Pure Sine wave	yes	yes	yes	yes	yes	yes
Mode-Selection	yes	yes	yes	yes	yes	yes
Solar-Grid-Batt	yes	yes	yes	yes	yes	yes
Solar-Batt-Grid	yes	yes	yes	yes	yes	yes

Download Catalogue Download Specifications
